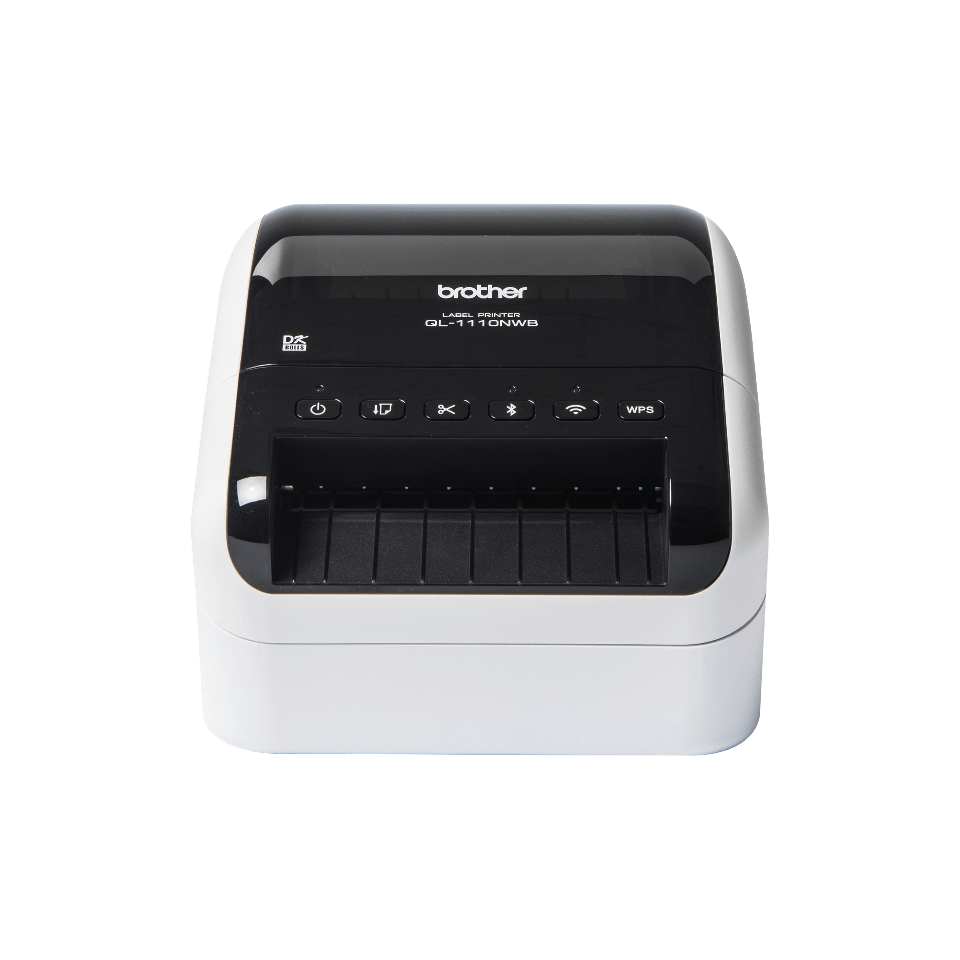

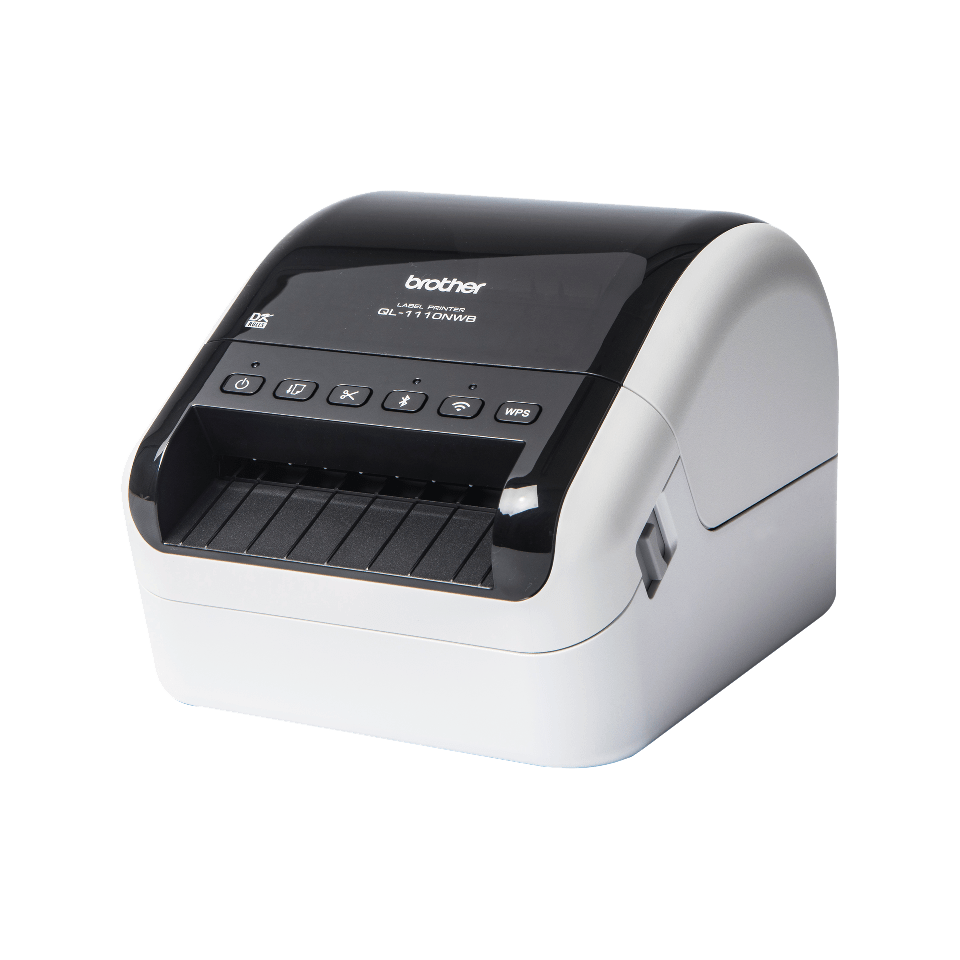

Brother QL-1110NWBc wireless shipping and barcode label printer
The fully featured warehouse and mail room label printer for labelling boxes and parcels. Several wired and wireless connectivity options and a true 4 inch (101.6mm) print width offers maximum flexibility.Product Details
- USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint
- Print labels up to 103.6mm wide from PC, Mac, smartphone or tablet
- Store up to 99 label templates in the printer's memory
- Supports printing of FBA (Fulfilled By Amazon) labels through special PDF crop print function
- Built-in cutter to create your own length labels using continuous rolls
- Various SDK (Software Development Kits) available for Windows, iOS and Android devices
Product Overview
This wide format shipping label printer has a true 4 inch(101.6mm) print width - to offer maximum compatibility with various shipping label software packages.
Easily send your products to a Fulfilled By Amazon (FBA) warehouse using the special "PDF Crop Print". Simply print the PDF that contains the multiple barcode labels from your FBA account, and let the driver detect, extract and print each individual label to the QL-1110NWBc automatically.
With USB, Ethernet, Wi-Fi and Bluetooth, you can choose to print labels from your PC, Mac, smartphone or tablet, whichever is most convenient. Plus with Apple MFi certification and AirPrint, all your connectivity options are covered.
And with a range of SDK's (Software Development Kits) for Windows, iOS and Android, the QL-1110NWBc can be easily integrated into your own systems and software.
Supplies and Accessories
-
The Brother DK-11201 Black on White Label Roll – 29mm x 90mmThis product is available from our authorized retailers
-
The Brother DK-11202 Black on White Label Roll – 62mm x 100mm. 300 labels per roll.This product is available from our authorized retailers
-
The Brother DK-11203 Black on White Label Roll – 17mm x 87mm - 400 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11204 Black on White Label Roll – 17mm x 54mm - 400 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11207 Black on White CD/DVD Film Label Roll– 58mm. 100 labels per roll.This product is available from our authorized retailers
-
The Brother DK-11208 Black on White Label Roll – 38mm x 90mm - 400 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11209 Black on White Label Roll – 29mm x 62mm. 800 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11218 Black on White Label Roll – 24mm x 90mm - 400 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11219 Black on White Label Roll – 29mm x 90mm - 400 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11221 Black on White Label Roll – 23mm x 23mm - 1000 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11234Black on White Label Roll – 60mm x 86mm. 260 labels per roll.This product is available from our authorized retailers
-
The Brother DK-11240 Black on White Label Roll – 102mm x 51mm - 400 labels per rollThis product is available from our authorized retailers
-
The Brother DK-11241 Black on White Label Roll – 102mm x 152mm - 400 labels per roll
-
The Brother DK-11247 Black on White Label Roll – 103mm x 164mm - 180 labels per rollThis product is available from our authorized retailers
-
"The Brother DK-22113 Black on Clear Continuous Film Label Roll – 62mm: - Tape is 15.24m long"This product is available from our authorized retailers
-
The Brother DK-22205 Black on White Continuous Paper Label Roll – 62mm,Tape is 30.48m long, 62mm wideThis product is available from our authorized retailers
-
The Brother DK-22210 Labelling Tape – 29mm wide - Tape is 30.48m longThis product is available from our authorized retailers
-
The Brother DK-22211 Black on White Continuous Film Label Roll – 29mm. Tape is 15.24m longThis product is available from our authorized retailers
-
The Brother DK-22212 Black on White Continuous Film Label Roll – 62mm. Tape is 15.24m long.This product is available from our authorized retailers
-
The Brother DK-22214 Black on White Continuous Paper Label Roll – 12mm - Tape is 30.48m long, 12mm wideThis product is available from our authorized retailers
-
"The Brother DK-22223 Black on White Continuous Paper Label Roll – 50mm - Tape is 30.48m long, 50mm wide"This product is available from our authorized retailers
-
"The Brother DK-22225 Black on White Continuous Paper Label Roll – 38mm - Tape is 30.48m long, 38mm wide"This product is available from our authorized retailers
-
"The Brother DK-22243 Black on White Continuous Paper Label Roll – 102mm - Tape is 30.48m long, 102mm wide"
-
The Brother DK-22246 Black on White Continuous Paper Label Roll – 103mm wide. Tape is 30.48m longThis product is available from our authorized retailers
-
The Brother DK-22606 Black on Yellow Continuous Film Label Tape – 62mm. Tape is 15.24m long, 62mm wide.This product is available from our authorized retailers
-
The Brother DK-44205 Black on White Continuous Paper Label Tape with Removable Adhesive – 62mm - Tape is 30.48m longThis product is available from our authorized retailers
-
Genuine Brother DK-44605 Continuous Paper Label Roll with Removable Adhesive – Black on Yellow, 62mmThe Brother DK-44605 Black on Yellow Continuous Paper Label Tape with Removable Adhesive – 62mm. Tape is 30.48m longThis product is available from our authorized retailers
-
The Brother DK-N55224 Black on White Paper Roll – 54mm - Tape is 30.5m longThis product is available from our authorized retailers
Specifications
General
| Machine Type | PC Connectable, Desktop |
| Database upload from PC | Yes |
| Housing colour | Glossy black and white |
| Image upload from PC | Yes |
| Memory Locations | 99 |
| Technology | Direct thermal |
| Template upload from PC | Yes |
Connectivity
| Airprint | Yes |
| Bluetooth | Yes (Ver 5.2) |
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile) |
| WiFi Direct | Yes |
| MFi | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802.11b/g/n (Infrastructure Mode) |
Dimensions and weights
| Dimensions | 170mm (W) x 222mm (D) x 151mm (H) |
| Weight | 1.73kg |
In the box
| In the box | User guide, Warranty card, Label Printer, USB cable, Quick setup guide, Power supply cord, 62mm black on white continuous paper label roll (8m), Large shipping die-cut labels (41 labels) |
Operating systems & software
| Windows | Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8,1, Windows 11, Server 2022 |
| Supported Operating Systems | For the full list of compatible operating systems visit support.brother.com |
Printing
| Bitmap Fonts | Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego |
| One Dimensional Barcode Symbologies | CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked) |
| Printing Maximum Label Width | 103,6mm |
| Printing Maximum Print Length | 3000mm |
| Printing Maximum Print Width | 101,66mm |
| Printing Outline Vector Fonts | Brussels, Helsinki, Letter Gothic |
| Printing Resolution | 300 x 300 (standard) |
| Standard Print Speed (mm per second) (24) | 110mm per second |
| Two Dimensional Barcode Symbologies | PDF417(Standard, Truncate, Micro), QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION, MSI, Aztec |
Editor label design
| Database File Compatibility | Microsoft Access, Microsoft Excel |
| Microsoft Office AddIn | Excel, Outlook, Word |
| Screen Capture | Yes |
| Fonts | All installed truetype fonts |
| Frames | 126 |
| Software Date And Time Stamp | Date and time |
| Software Label Orientations | Horizontal, Vertical |
| Software Sequential Numbering | Yes |
| Software Text Alignment | Centre, Left, Justify, Right |
| Software Typestyles | Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround |
| Software Vertical Print | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Caveats
- [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
Learn more about this product
4 inch (101.6mm) print width
To ensure maximum compatibility with third party shipping label printing software, the QL-1110NWBc has a print width of 4" (101.6mm) - the specification required by the majority of parcel carriers.
Large range of labels for any application
Brother DK rolls slot-in easily for fast label changes. Several types are available:
- Pre-sized die-cut adhesive labels in paper and plastic film material.
- Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 3 metres).
- Non-adhesive card ideal for receipts and name badges.
- Removable adhesive for repositionable labels.
Microsoft Office and database printing
The P-touch Editor add-in for Microsoft Office (Windows only) allows you to select and print data directly from within Word, Excel and Outlook with just a click! Or if you have text stored in an Excel or .csv file, you can import this into P-touch Editor. Simply place each field on your label layout to print many labels with the same format (design). Ideal for printing shipping, product and pricing labels.
FBA (Fulfilled By Amazon) labels
Easily print labels suitable for sending your products to Amazon fulfilment centres using the crop print function in the driver. After Amazon creates your PDF containing the barcode labels to attach to your products, tick "crop print" in the driver to automatically extract each individual label from the A4 sheet, and print to individual labels on the QL-1110NWBc.
Wide format shipping/barcode label printer
The QL-1110NWBc is the ideal label printer for mail rooms, warehouses, and anyone who needs to print high quality shipping labels containing barcodes, images and text.
Includes many connectivity options as standard
PC and Mac users can connect via USB, wired ethernet or by Wi-Fi. Or easily connect your mobile device using Bluetooth. For full compatibility with Apple devices, the QL-1110NWBc is MFi certified, and also includes AirPrint.
Easily add label printing into your existing systems
Brother provides free software development kits for Windows, iOS and Android for system developers to easily incorporate the QL-1110NWBc into legacy software.
Print from PC, Mac, iOS and Android devices
The free P-touch Editor label design software for PC and Mac lets you add text, images, barcodes and frames to your labels. Or use the free iPrint & Label app for iOS and Android to create and wirelessly print labels from your mobile devices.
