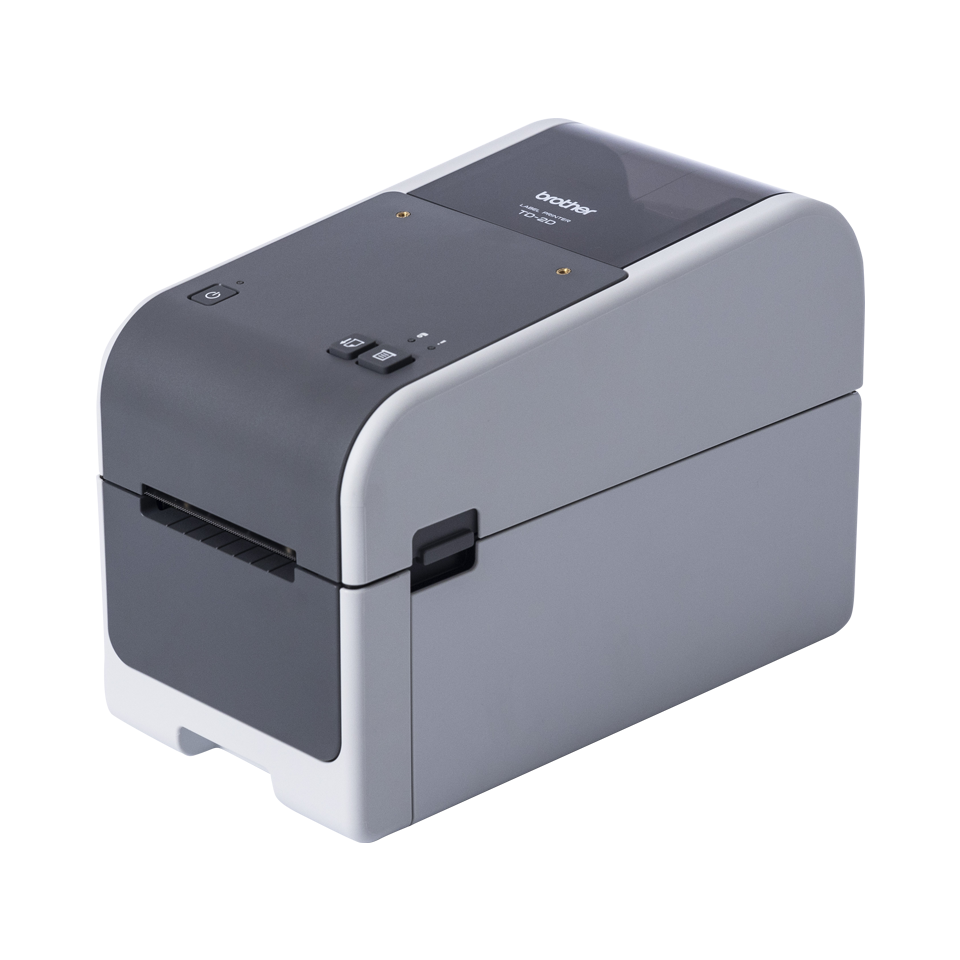

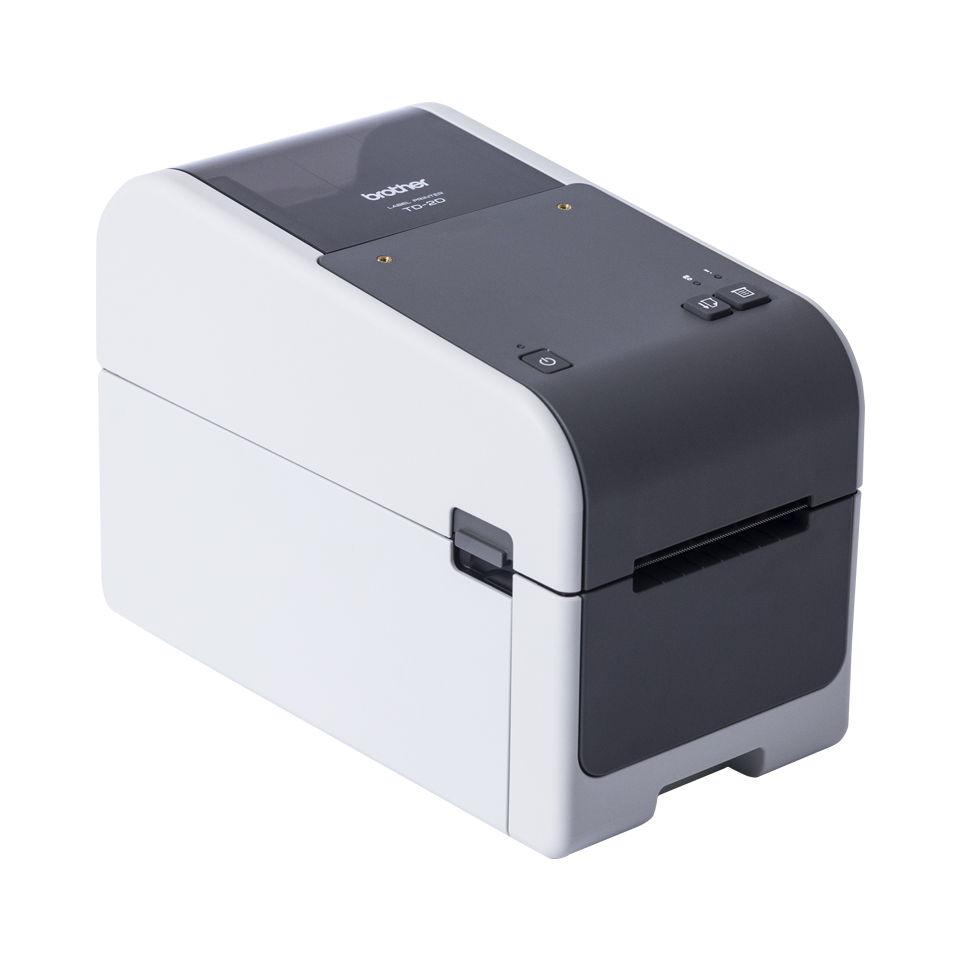

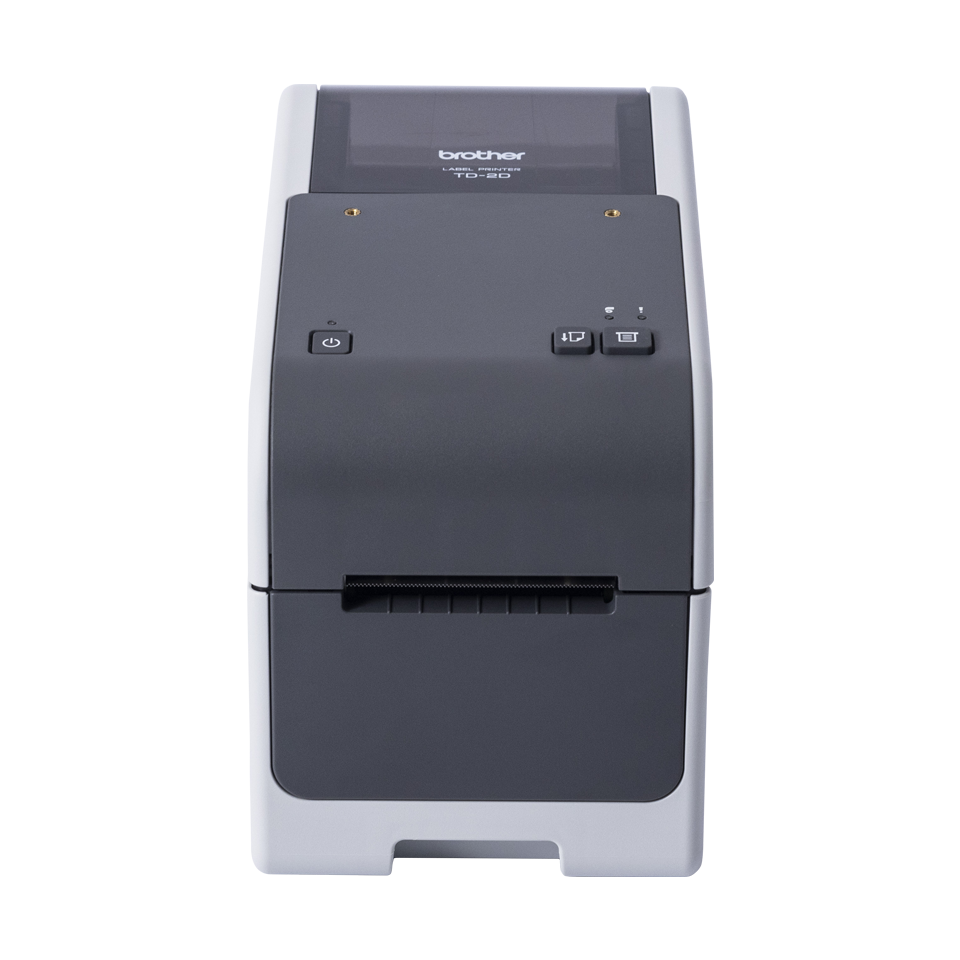

Brother TD-2320D300 - 2" desktop network label printer
An efficient high-resolution 2" desktop network label, receipt and wristband printerProduct Details
High quality 300dpi print resolution
USB & network connectivity (serial connectivity available as optional accessory with PA-SCA-002)
ZPL 2, EPL 2, DPL printer language emulations
Up to 152mm/second print speed
256MB RAM, 64MB Flash
Three year warranty
Product Overview
Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320D300 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail, healthcare and food traceability – where you need to be able to print high-quality receipts, labels or wristbands in any location.
Supplies and Accessories
-
The BDE-1J000102-102 continuous label roll, measuring 102mm wide and 58m in length, has been Certified by Brother International Europe.This product is available from our authorized retailers
-
The BDL-7J000058-102 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Cannot be bought individually as it is delivered in packages of 8.This product is available from our authorized retailers
-
EU AC adapter accessory with 2-pin plug for powering Brother TD-2D label printers.This product is available from our authorized retailers
-
EU Healthcare AC adapter accessory with 2-pin plug for powering Brother TD-2D printers.This product is available from our authorized retailers
-
This product is available from our authorized retailers
-
1-slot battery charger accessory for selected TD-2D desktop label printers.This product is available from our authorized retailers
-
Lithium-ion rechargeable battery for the TD-2D Label printers.This product is available from our authorized retailers
-

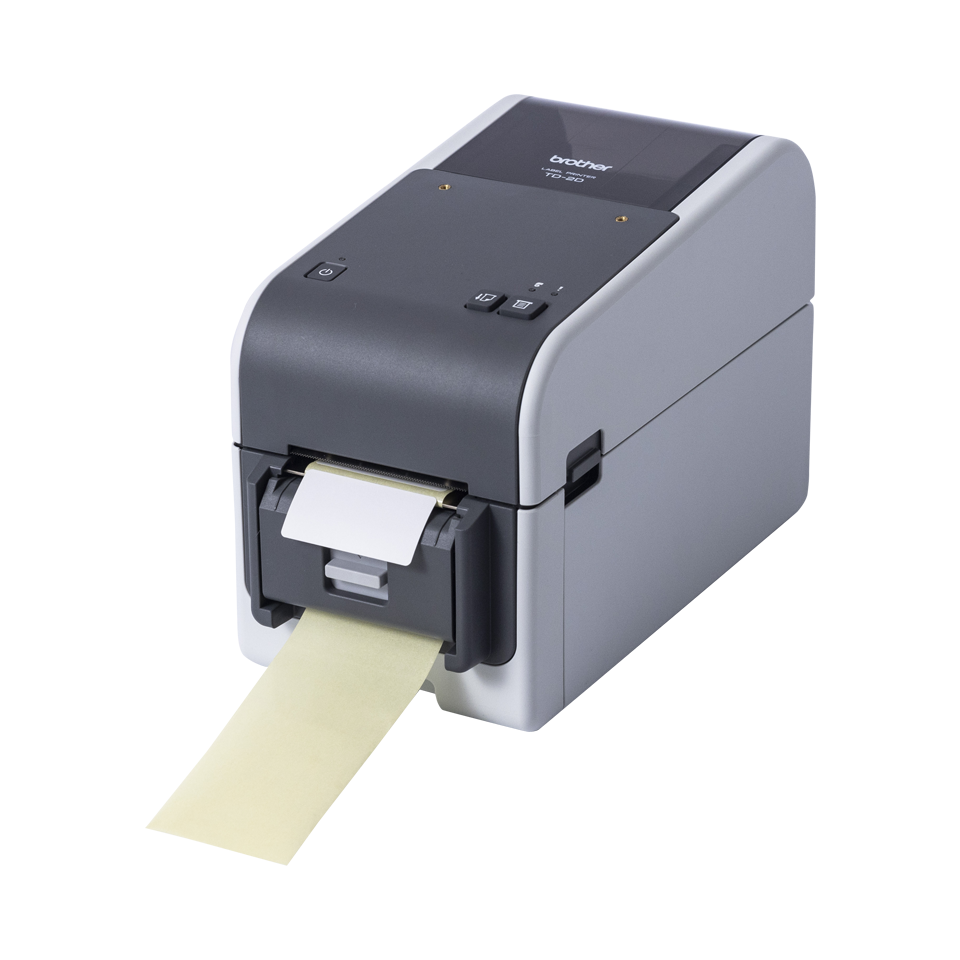

Automatic label cutter accessory compatible with selected TD-2D desktop label printers.This product is available from our authorized retailers
-
Thermal Print Head (203dpi) for the TD-2D label printersThis product is available from our authorized retailers
-
Thermal Print Head (300dpi) for the TD-2D label printersThis product is available from our authorized retailers
-
This product is available from our authorized retailers
-
This product is available from our authorized retailers
-
This product is available from our authorized retailers
-
This product is available from our authorized retailers
Specifications
General
| Technology | Direct thermal |
| Maximum media width (mm) | 63mm |
| Buttons | Power , Feed, Print |
| Display | None |
| Memory capacity | 64MB |

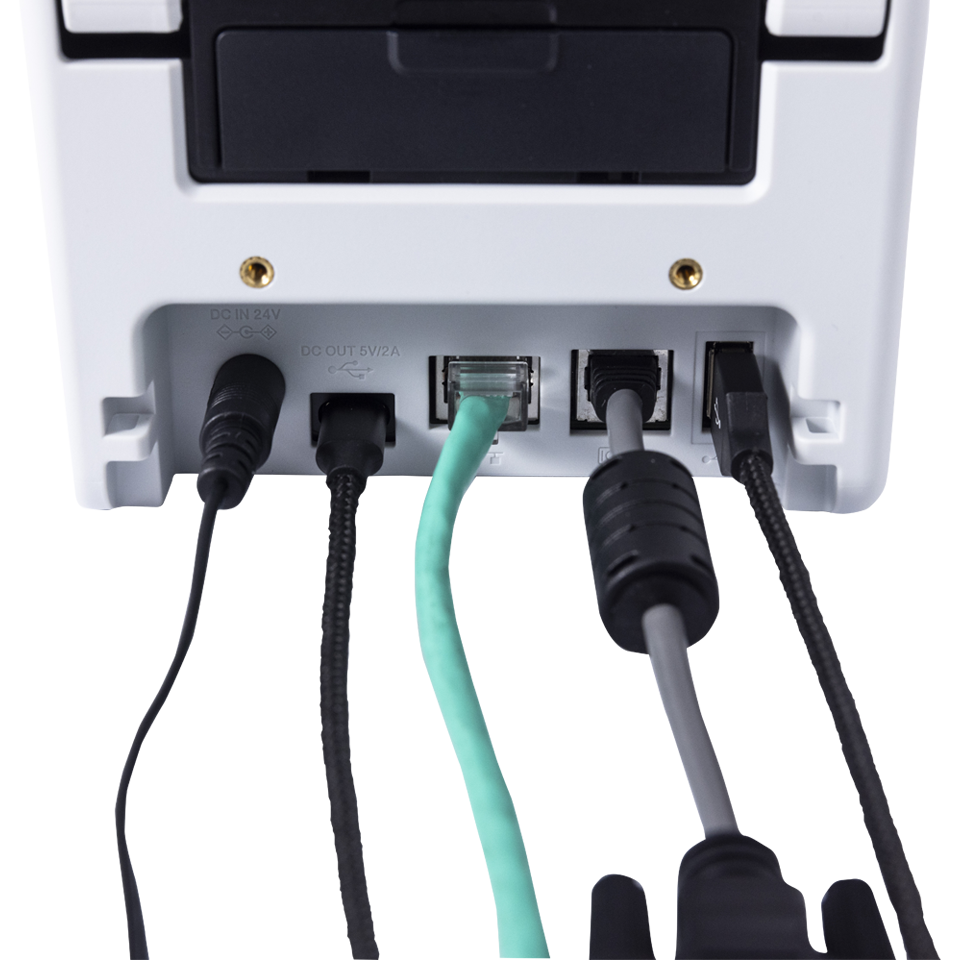

Connectivity
| Serial | Yes (Requires optional cable) |
| USB interface | USB 2.0 Full Speed (Type C) |
Dimensions and weights
| Dimensions | 119mm (W) x 224mm (D) x 158mm (H) |
In the box
| In the box | AC adaptor, AC Power supply cord, Documentation, Printer, USB Cable |
Operating systems & software
| Supported Operating Systems | Windows (10, 11, Server 2016, Server 2019, Server 2022) |
Operating Environment
| Operating Humidity | 20% - 80 % |
| Operating Temperature | 5°C - 40°C |
| Storage Humidity | 10% - 90% |
| Storage Temperature | -20°C - 60°C |
Printing
| One Dimensional Barcode Symbology | Code39, EAN13(JAN13), Code128, CODABAR(NW7), GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked), GS1-128(UCC/EAN-128), ITF14, Intelligent Mail Barcode, GS1 DataBar (RSS), POSTNET, UPC-A, UPC-E |
| Two Dimensional Barcode Symbology | QR Code, PDF417, DataMatrix, Aztec, MaxiCode |
| Maximum Print Length | 3000mm |
| Printing Resident Fonts | Letter Gothic Bold, Gothic, Brussels, Helsinki, Letter Gothic Regular |
| Resolution (dpi) | 300 |
| Printing Maximum Label Width | 63mm |
| Printing Maximum Roll Core Diameter | 12,7mm |
| Supported commands | Raster, P-touch Template, ZPL 2 emulation, CPCL emulation, ESC/P |
Warranty
| Warranty | 3 years return-to-base |
